وصف

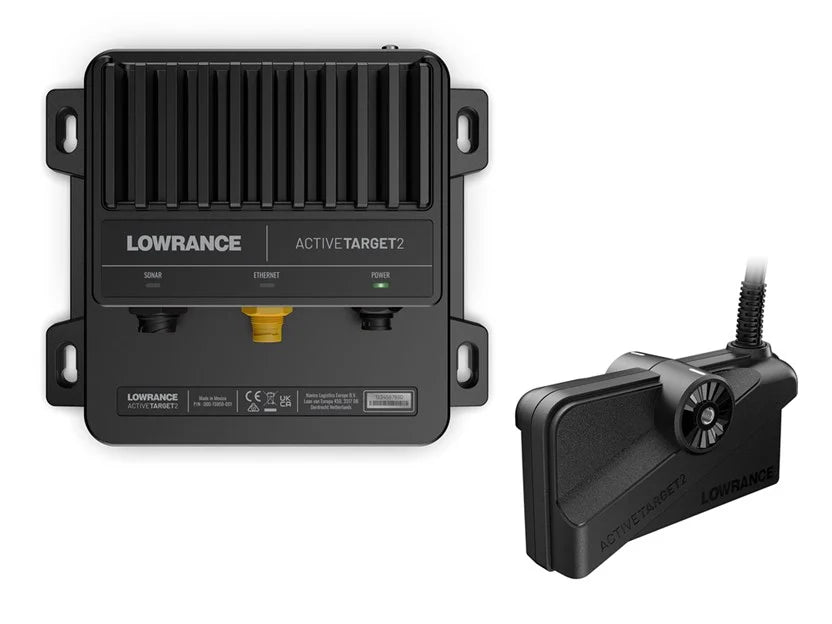

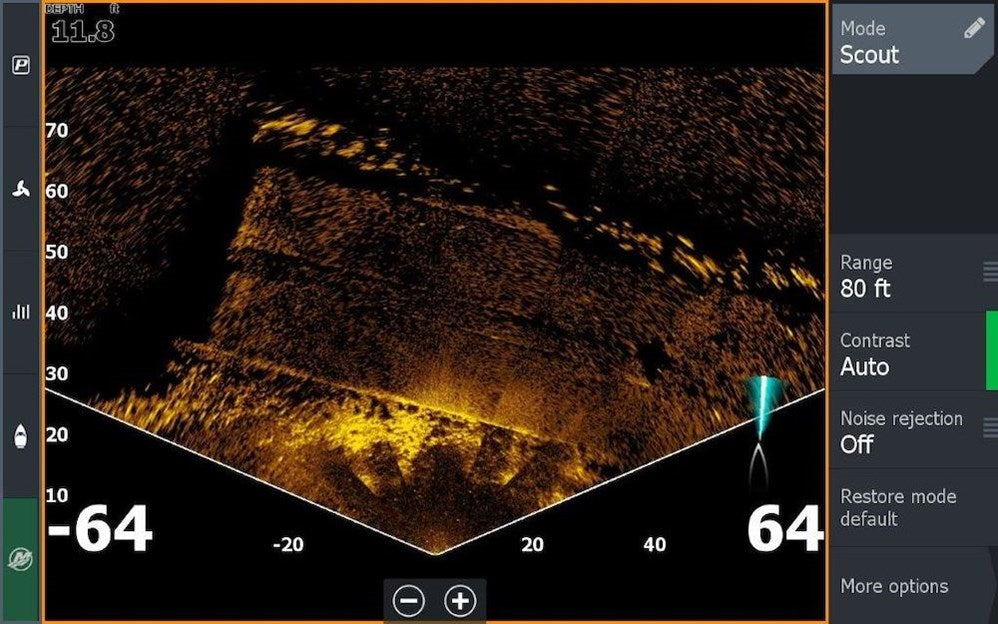

ActiveTarget® 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to your lure in real-time, you can make the quick adjustments that make the difference and help you catch more fish.
Specifications
Connectivity
Ethernet PortsYes:1 - 100 Mbit Ethernet Port
Electrical
Power Consumption max1.5A @ 13.8VDC
Power Consumption typical1.5A @ 13.8VDC
Recommended Fuse Rating5A
Supply Voltage10.8 VDC - 31.2 VDC
Environment
Humidity60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Shock Vibration100,000 cycles of 20 G
Storage Temperature Range-22°F to 158°F (-30°C to 70°C )
WaterproofratingIP67
Physical
Dimensions W x H x DModule: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm); Transducer: 5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)
Mounting TypeModule: Surface Mount; Transducer: Bracket Mount
WeightModule: 4.12 lbs (1.86 kg); Transducer: 2.67 lbs (1.21 kg)
Other
InterfaceEthernet to: HDS Pro, HDS Live, HDS Carbon, Elite FS
