Description

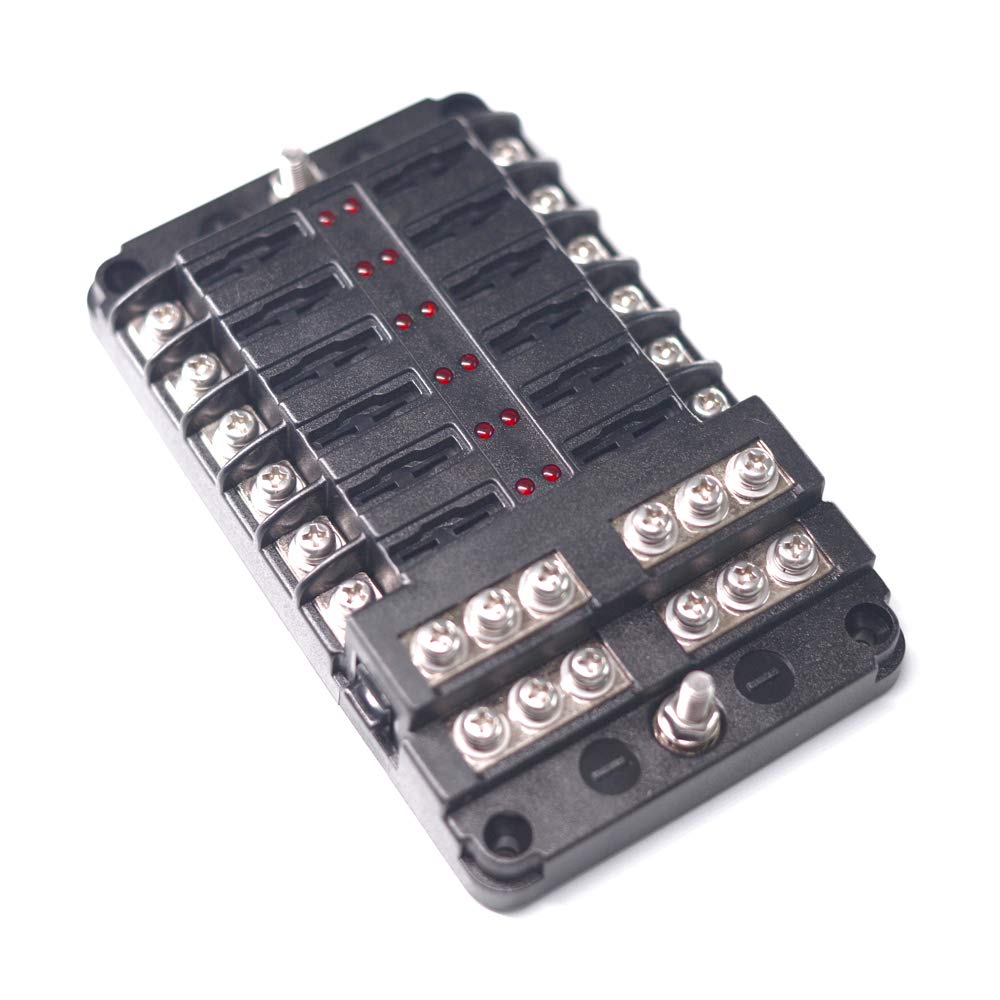

The 12-Way Marine Fuse Block provides independent fused protection for up to 12 DC circuits aboard boats, yachts, and commercial marine vessels. Each position includes an LED warning indicator and the unit features a built-in negative bus bar for clean single-point grounding.
Specifications
- Circuits: 12 independent fused positions with negative bus
- Input rated voltage: 32V DC max
- Input rated current: 100A max
- Max output per circuit: 30A
- Terminal material: Nickel-plated copper
- Housing: PBT base, PC cap, stainless steel screws

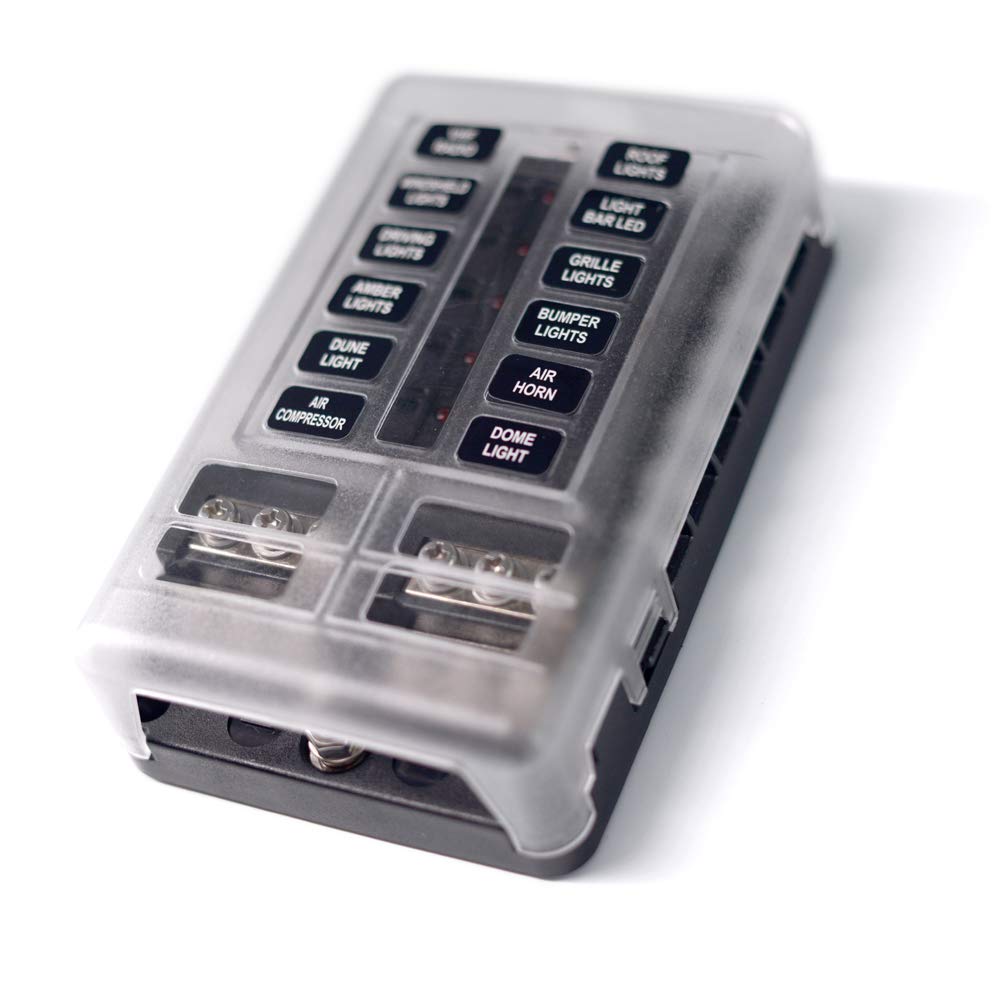

- Cover: Transparent polypropylene with push-latch — splash and dust resistant
-
SKU:
KT-1714L
Key Features
- LED indicator per circuit — lights up when a fuse blows for instant fault identification

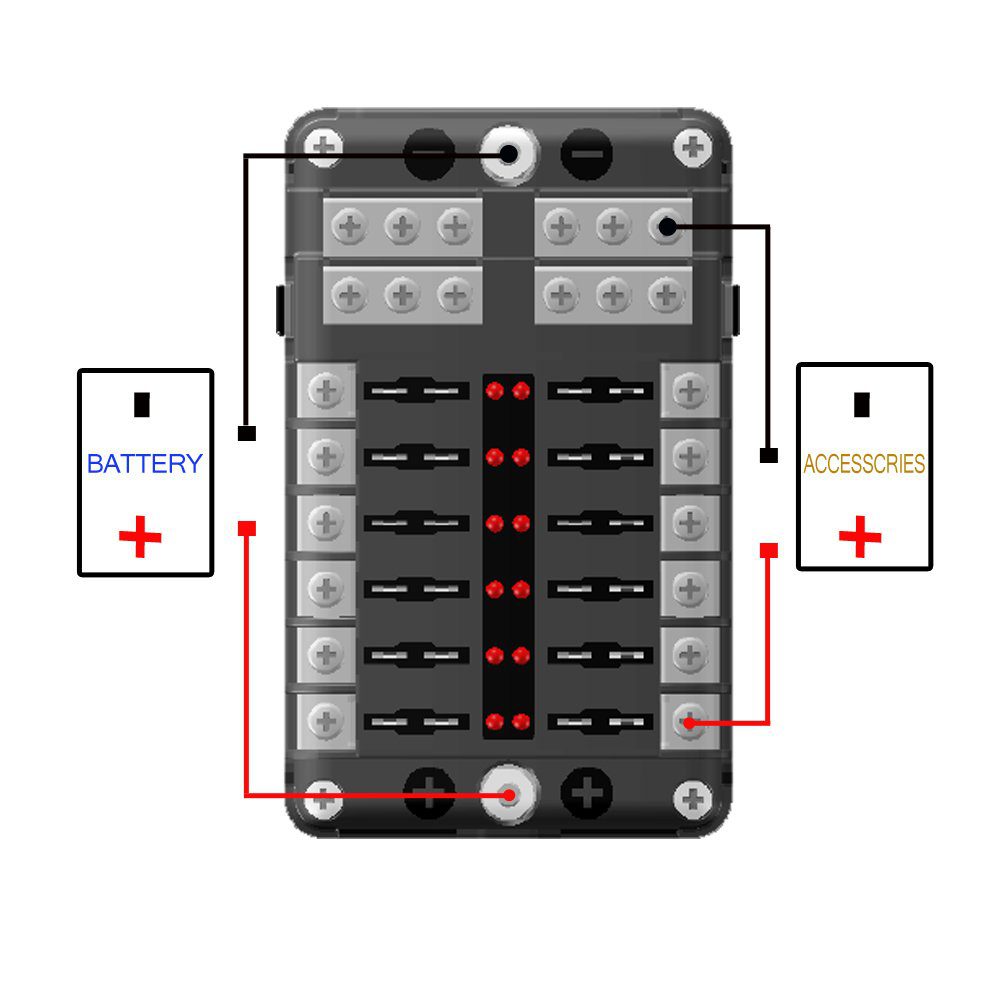

- Integrated negative bus bar — reduces wiring complexity and consolidates grounding
- Multi-function circuit label stickers included for organised panel management
- Splash-resistant cover suitable for exposed marine electrical compartments
- Rated for 10–32V DC systems — compatible with 12V and 24V marine installations
Well-suited for marine electrical panels on Gulf vessels where clean circuit organisation and reliable protection are required.
