Description

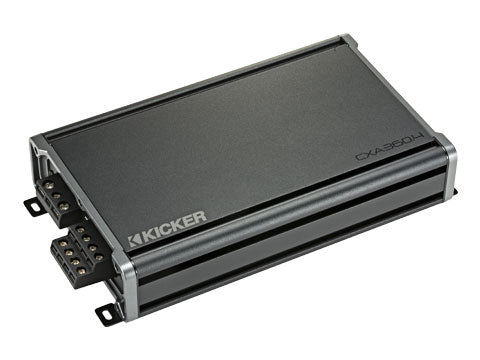

The CXA360.4 Four-Channel Amplifier is built to power all your door speakers in a single, powerful package.
Flexible and Fun
Using Class A/B power, this amp features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover is also included, letting you quickly tune your system to perfection.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
Highly efficient heat sinks keep the amp cool with a sophisticated new look, while KICKER’s FIT+™ (Fail-safe Integration Technology-PLUS), gives you outstanding noise rejection - even with premium factory audio systems.
This CX-Series Amplifier delivers as much as 90 watts into four full-range channels, or 180 watts into two bridged channels. See below for more details.
Class A/B full-range channels
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Vertical mounting hardware included for another unique look
Compatible with CXARC Remote Bass Control (AMP2 must be in LO-PASS X-OVER mode)
Specifications
MODEL
CXA360.4
Power (watts/ch) 4 Ohm Stereo
65x4
Power (watts/ch) 2 Ohm Stereo
90x4
Power (watts/ch) 4 Ohm Mono
180x2
CXARC Remote Bass Capable (sold sep.)
Yes
Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)
12-1/2, 31.7
Frequency Response (Hz):
10Hz-20kHz
Input Sensitivity:
125mV–5V (Low Level)
1V–40V (High Level)
Signal-to-Noise Ratio:
95dB
Active Crossover:
HI, LO or OFF; Variable 50–200Hz @ 12dB/Octave
Subsonic Filter:
n/a
KickEQ™ Boost
Variable 0-6dB @40Hz
