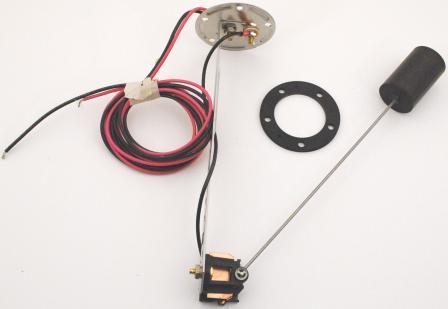

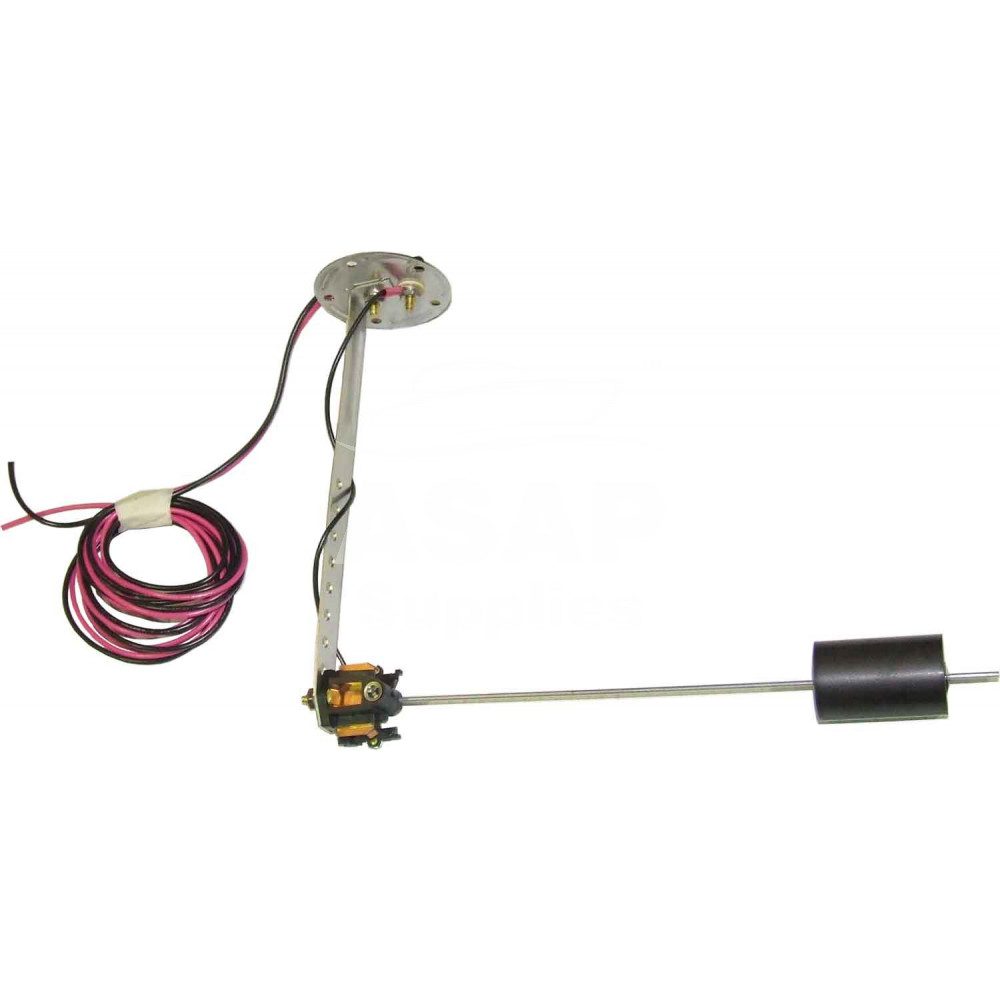

Faria Marine Fuel Level Sender 8"-16" Single Station

The Faria Beede Marine Fuel Level Sender is a single-station adjustable sender for use with Faria Beede American-resistance fuel level gauges on boats and yachts. Adjustable from 8 to 16 inches of tank depth to suit a range of onboard fuel tank sizes.

Specifications

• SKU: BR-91001
• Brand: Faria Beede
• Type: Single station fuel level sender
• Resistance: American standard (240–33 Ω)
• Adjustable Depth: 8–16 inch
• Float Diameter: 31 mm
• Flange: 5 × 5.1 mm holes on 54 mm PCD | OD: 70 mm | Float hole: 42 mm
• Includes: Flange gasket

Key Features

• American-resistance output (240–33 Ω) is directly compatible with Faria Beede and most American-standard marine fuel gauges
• Adjustable 8–16 inch range covers common fuel tank depths on centre console and cuddy cabin boats
• Supplied with flange gasket — provides a fuel-tight seal at the tank mounting flange without additional sealing tape
• Standard 5-hole flange pattern allows direct replacement on tanks with existing Faria-compatible sender flanges

In stock at Falsabih Marine, Kuwait.
