Description

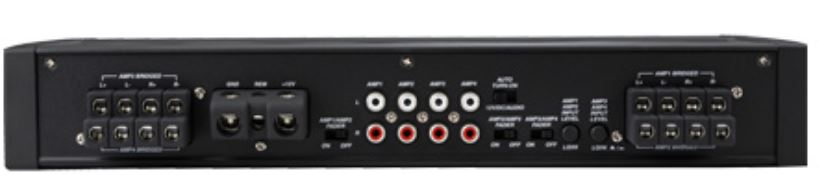

The KXMA 800-watt, eight-channel amplifier is one of the most flexible marine power pieces available today.
Gain, crossover and bass-boost conrols are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls. KickEQ™ delivers as much as an 6dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection.
Class D Amplifier
Gain Control With "Gain Match" LED Indicator
FIT2™ (Fail-safe Integration Technology) Circuitry
Variable 24dB Crossover
DSP-Controlled Preamp
KickEQ™ 6dB Variable Bass Boost
ABYC/NMMA-Compliant Power Terminals
Conformal-Coated Circuit Boards
Easy Access to Settings behind Gasket-Sealed Cover Panel
Black Anodized Aluminum Chassis
Top-Mounted, Teal LED Light Pipe
Stainless-Steel Mounting Hardware Included
Want setup help? Go to KICKER U for a free woofer-and-amp configuration app!
This KXMA amplifier delivers as much as 100 watts into eight full-range channels, or 200 watts into four sets of bridged channels. See below for more details.
Specifications:
POWER [watts/ch], 2 OHM STEREO
100 x 8
POWER [watts/ch], 4 OHM STEREO
50 x 8
POWER [watts/ch], 4 OHM BRIDGED MONO:
200 x 4
DYNAMIC POWER [watts]:
1200
DIMENSIONS [in] all models 2-1/8H x 8-5/16W x ___L
14-3/4
DIMENSIONS [cm] all models 5.4H x 21.0W x ___L
37.4
FREQUENCY RESPONSE [Hz]
10-20k, +0/-1dB
INPUT SENSITIVITY
High Level 250mV-10V, Low Level 125mV-5V
SIGNAL-TO-NOISE RATIO
>95dB, a-weighted, re: rated power
ACTIVE CROSSOVER
(amp 1 and amp 2) 24dB/octave, Off/ HP/LP, variable 10-5kHz w/ 10x switch
(amp 3 and amp 4) 24dB/octave, Off/ HP/LP/BP, variable HP 10–500Hz; variable LP, 40–5kHz w/ 10x switch
KickEQ™ BOOST
Variable 0-6dB, centered @ 40Hz (amps 1, 2, 3 and 4)
COMES WITH WIRED REMOTE
No
