Description

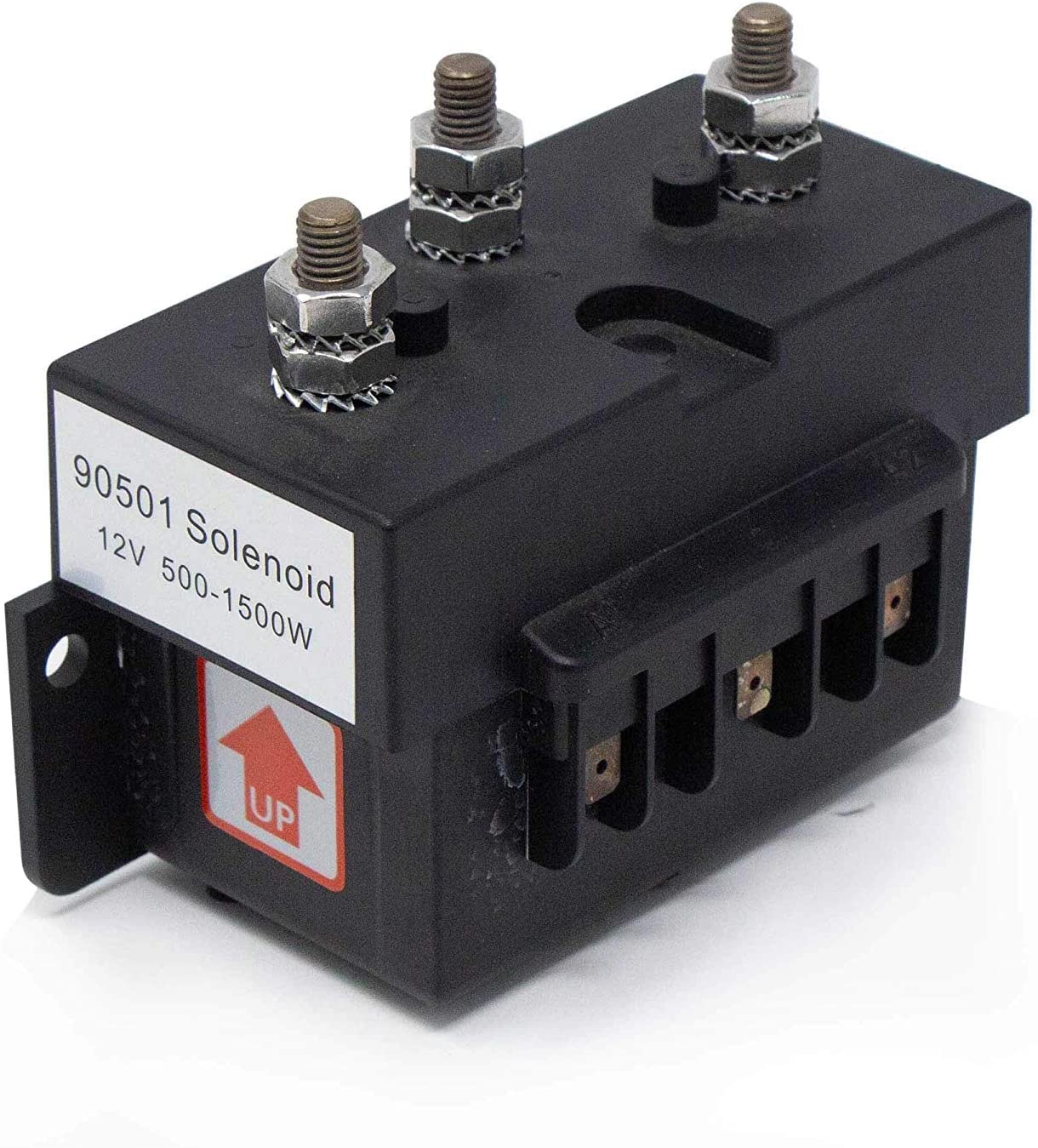

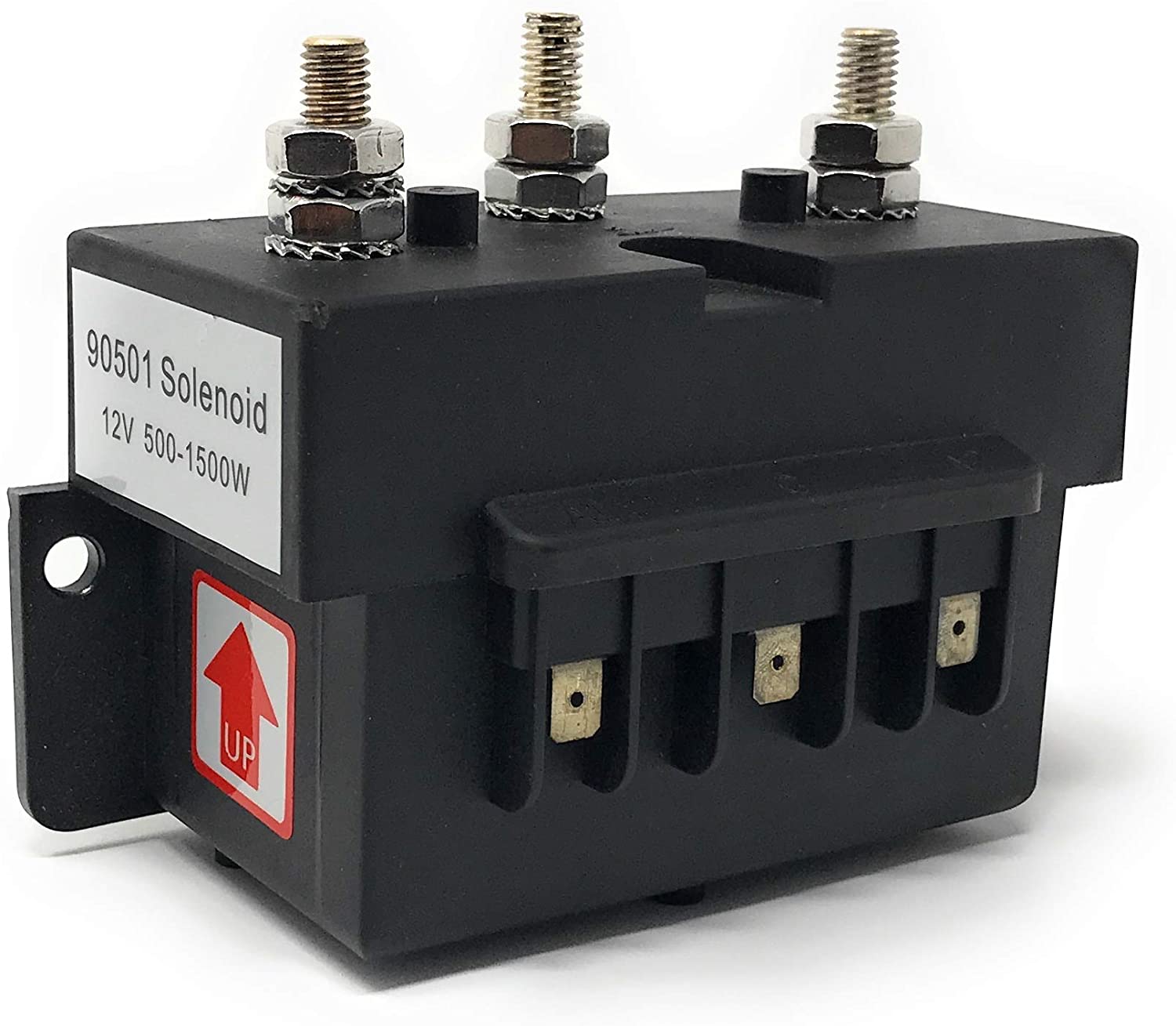

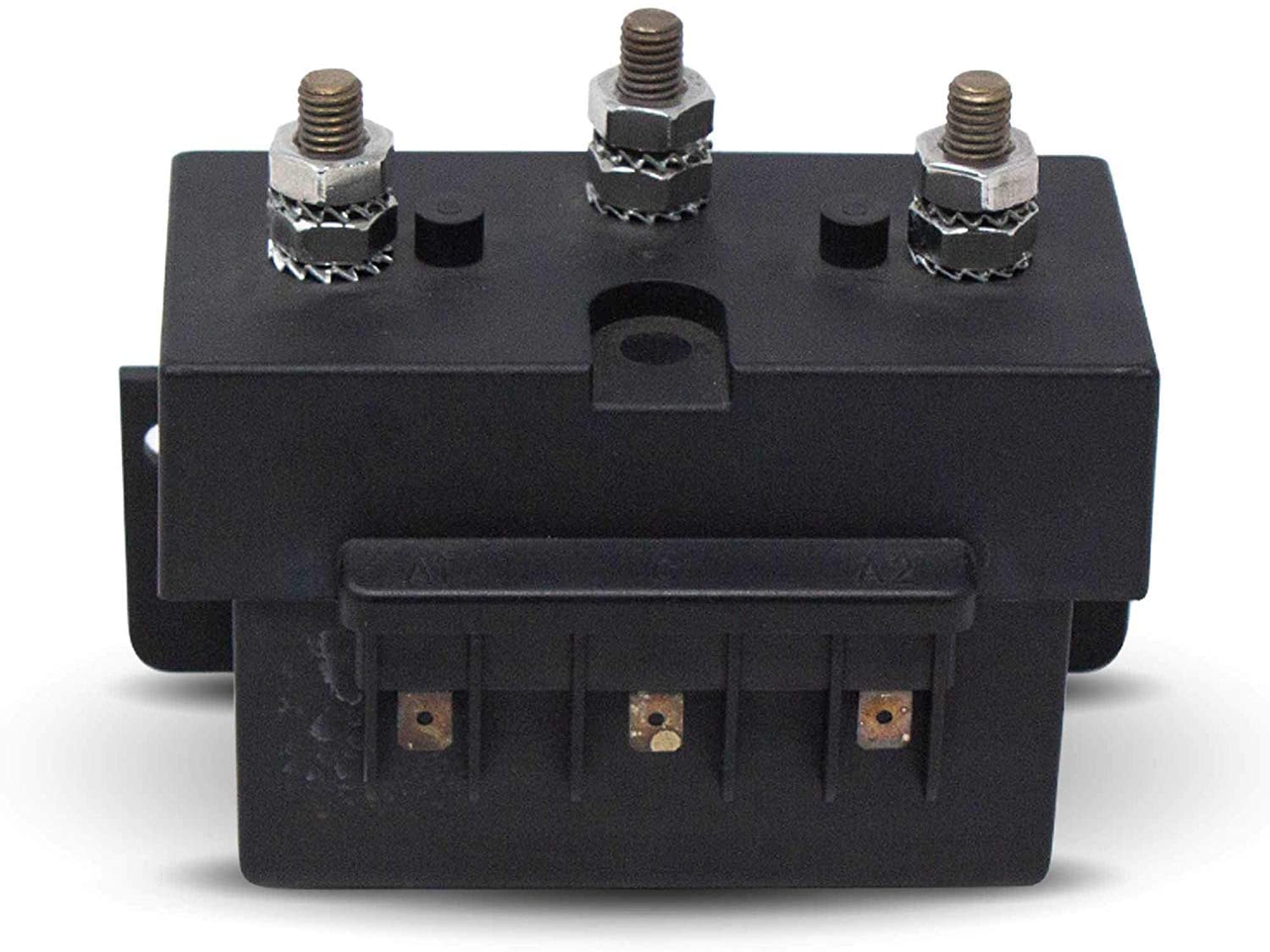

The Marine Anchor Windlass Solenoid Control Box is a 12V DC dual-direction solenoid assembly for controlling electric windlasses and capstans with motors up to 1500W, using a 3-wire motor circuit. Allows multiple control stations via foot switches and toggle switches.
Specifications
-
SKU:
BE-90501 - Brand: BEP Marine
- Voltage: 12V DC
- Motor Rating: Up to 1500W
- Circuit Type: 3-wire reversing contactor
- Control Stations: Multiple (foot switches and toggle switches)
- Construction: Sealed, corrosion-resistant housing
Key Features
- Dual-direction solenoid controls windlass up and down directions from a single sealed unit — replaces separate up/down relays
- 1500W motor rating suits most 12V anchor windlasses used on vessels up to approximately 12 metres
- Allows multiple control stations — connect bow foot switches plus helm toggle switches to a single control box without rewiring
- 3-wire motor circuit is compatible with standard BEP, Maxwell, Quick, and Lofrans windlass motor wiring
- Sealed corrosion-resistant housing rated for above-deck anchor locker and chain compartment installation
In stock at Falsabih Marine, Kuwait.
