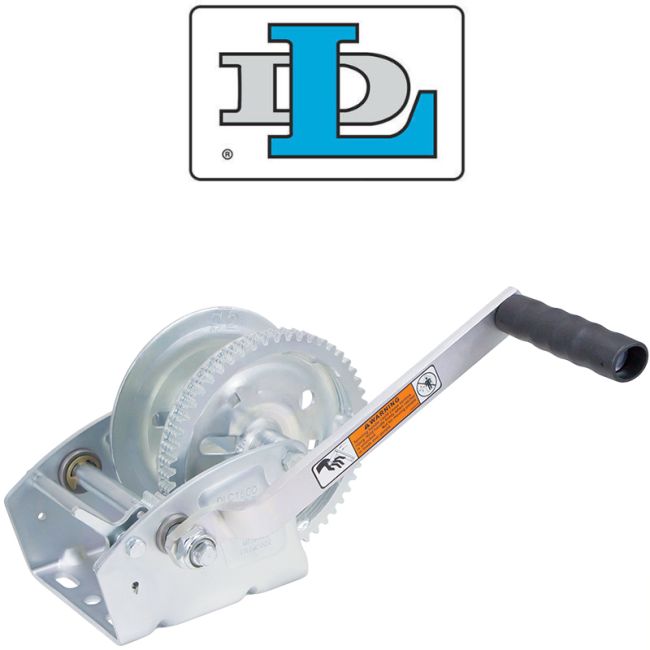

Dutton-Lainson 14627 DL1802A Plated Pulling Winch – 1,800 lb

The Dutton-Lainson 14627 DL1802A is a heavy-duty single-speed hand winch for horizontal pulling applications. It combines heat-treated high-carbon-steel gears, permanently lubricated bearings and a corrosion-resistant zinc TUFFPLATE finish for reliable service on boat and utility trailers.

• Manufacturer part number: 14627
• Model: DL1802A
• Rated pulling capacity: 1,800 lb (817 kg)
• Gear ratio: 5.4:1
• Handle length: 9½ in
• Drum hub diameter: 1⅛ in
• Maximum cable capacity: 9/32 in × 58 ft
• Maximum strap capacity: 38 ft
• Ratchet: Reversible with freewheel operation
• Finish: Zinc TUFFPLATE
• Origin: Made in USA

Important: For horizontal pulling only; not for lifting or moving people.
