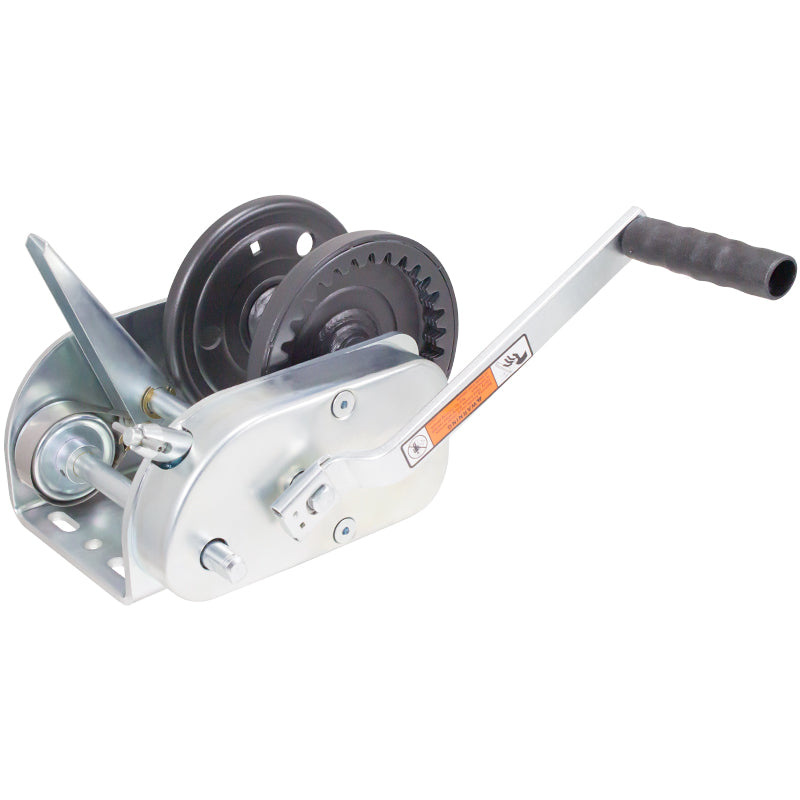

Dutton-Lainson 14881 DL3500B Two-Speed Pulling Winch – 3,500 lb

The Dutton-Lainson 14881 DL3500B is a two-speed heavy-duty hand winch engineered for demanding horizontal pulling. A manually controlled hand brake supports controlled load release, and the quick-attach handle switches between high-speed line take-up and low-gear pulling from the same side.

• Manufacturer part number: 14881
• Model: DL3500B
• Rated pulling capacity: 3,500 lb (1,588 kg)
• Gear ratios: 12:1 and 6:1
• Handle length: 9½ in
• Drum hub diameter: 1 5/16 in
• Maximum cable capacity: 3/8 in × 37 ft or 7/32 in × 106 ft
• Features: Two-speed operation, reversible ratchet, freewheel and hand brake
• Finish: Zinc-plated base and hardware with powder-coated reel
• Origin: Made in USA

Important: Intended for horizontal pulling only; not for lifting or moving people.
